Efficient Solutions for the Ventilation and climate control

System that meets ERP requirements with efficient EC technology and noticeably low operating costs.


As of January 1, 2016 the EU Regulation 1253/2014 must be adhered to, to supply a building with fresh air and to cool or heat decentralized. This questions the conventional concepts or makes it impossible to apply some old ones. Therefore, new solutions are needed.

A central concept which is strictly prohibited according to a regulation, is the ventilation with decentral units as shown below.

ERP System solution GB

In this case the supply air and the extract air are mechanically conveyed inside a building (or a part of a building) and additionally cooled or heated. With such a requirement, a heat recovery system is now mandatory.

In order to do this, the exhaust air system should now be replaced with an air-handling unit.

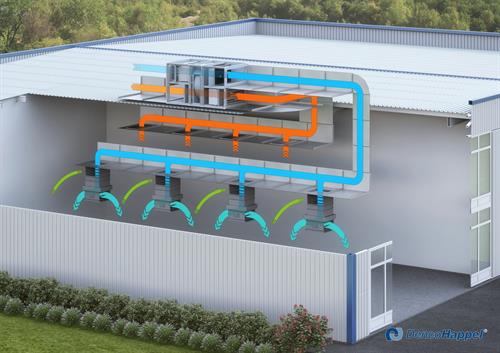

COM4 and MultiMAXX section

COM4 and MultiMAXX units

The air-handling unit is designed for the minimum requirements of the fresh air quantity. Therefore, a relatively small unit can be used. It should include the necessary filter stages, a heat recovery system, and corresponding fans. A cooling coil or heater is here not necessary. The primary air from the air-handling unit is supplied via the ducts to the mixing-air chamber of the decentral units in which it is mixed with the secondary air. This air mixture then flows through a heat exchanger which heats it to the locally required temperature. Subsequently, the used air from the air-handling unit is discharged where the remaining energy in the heat recovery system is added to the supply air.

it to the locally required temperature. Subsequently, the used air from the air-handling unit is discharged where the remaining energy in the heat recovery system is added to the supply air.

 Thus, with this concept you can

  1. handle air in a decentralized way to meet the local requirements
  2. widely distribute fresh air
  3. create a cost and energy efficient solution
  4. and fulfill the EU Regulation 1253/2014.



We will be glad to support you when selecting the units. Simply contact one of our sales offices.
