DencoHappel MATRIX® for Central Units

Integrated or external

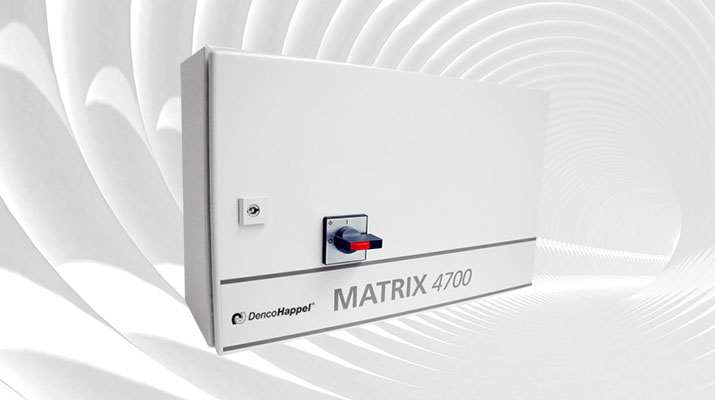

Either as compact switch cabinet, or integrated ready for connection into the unit: both are available, according to unit type and the customer’s wishes.

  •

    Central systems

More than 450 standard variants of the MATRIX 4700 compact control system enable perfect adaptation of the control system to the technology of the controlled unit. After electrical connection of the controlled unit, initial startup takes place with only a few settings, since the MATRIX has been virtually completely pre-parameterized. If user-relevant adaption of the parameterization is necessary, this is possible with aid of the operator control unit, or by the optional service software MATRIX.PC. This software also serves for direct control of the actuators during initial startup, and for long-term recording of temperature curves.

Whether stepped or continuously variable motor control; control of pressure, air volume flow, or temperature; or central operator control with additional external room operator control unit: MATRIX 4700 always provides a perfectly matched solution at a cost-benefit ratio in its class that you can hardly beat.

  • Controller series
  • Operator control units
  • Applied for

MATRIX 4700



Protection class IP54 with external room-temperature sensor, or IP20 with integrated room-temperature sensor. Installation over flush-mounted socket or directly on the wall. Colour: RAL 7035 (light grey) or RAL 9016 (traffic white). Models with or without displays.



Central air-handling units with the following functions: heating, cooling, heating or cooling, heating and cooling with water, electrical heater, or refrigerant; recirculated-air, mixed-air, outside-air operation modes; heat recovery.


Contact Us

DencoHappel GmbH

Südstraße 48
44625 Herne
Germany
+49 2325 468-00
+49 2325 468-222
Downloads
Areas of Application

Compact central systems:

Control:

  • MATRIX 4700
