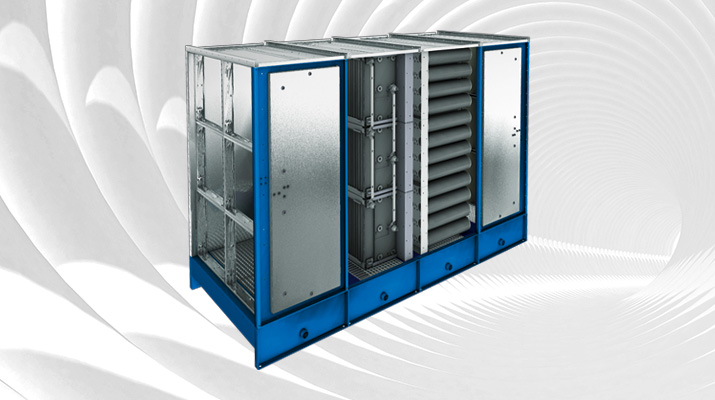

The MultiMaster-Vario is a modular air-duct filter system that can be combined with any other required modules in the MultiMaster-Vario range.
In the electrostatic filter system, two installation types are available for selection:
The DELFI, E wall frame system is designed for large volumes of air, and the VEk, Ek plug-in system with compact design is intended for smaller air volumes.
The enclosure consists of steel (2 mm zinc-plated, or 3 mm with power coating) or stainless steel, as alternative.
Standard fans are available with airflow throughput up to 30,000 m³/h, with total pressure up to 2,000 Pa.
- Air flow: up to max. 210,000 m³/h
- Areas of application: process-air facilities, central air-suction and exhaust-air systems, separation of oil mist (flash point > 120 °C), steel rolling mills, the textile industry, and HVAC systems.
