Water-cooled Chillers and Heat pumps for Indoor Installation

Water is its element!

Compared to the air-cooled units, the chillers of the GLWC series are distinguished by their highly compact design and suitability for connection to a heat-rejection unit. Therefore the units can also be brought into the building through small openings without difficulty. The removed heat can be recovered through hydraulic circuits and used for other processes.

In order to avoid irritating noise pollution within buildings and halls, the already super low noise units can optionally also be fitted out with additional sound-insulation cladding.

All water-cooled units are also available as heat pump model. Depending on unit series, the switch over is effected via an integrated 4-way valve in 2-pipe model or hydraulically as 4-pipe system.

  •

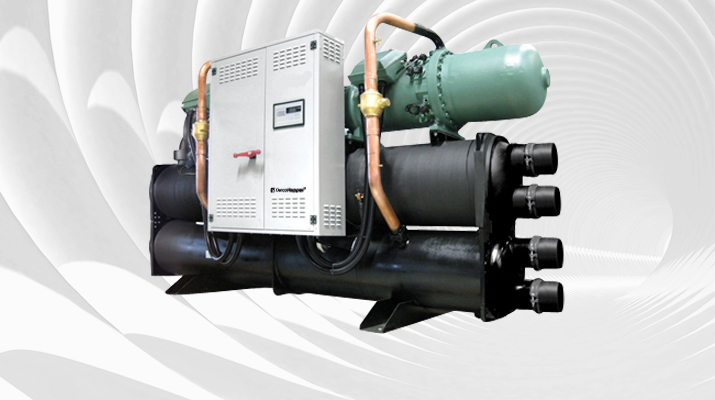

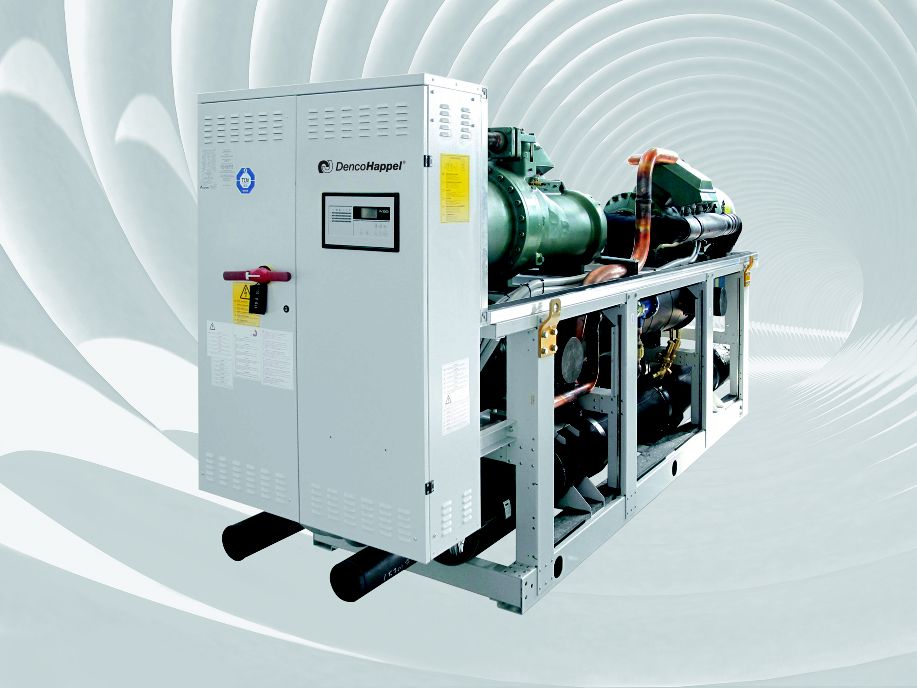

    GLWC 1055 – 2475 DA2 (190 - 1700 kW)

    General:

    - Highly efficient model with flooded evaporator
    - Optimized for space-saving configuration

    Refrigeration circuit:

    - High-efficiency optimized model with 1 or 2 screw compressors
    - One screw compressor each per refrigerant circuit for best possible redundancy
    - Screw compressor with continuously variable capacity control for constant water outlet temperatures
    - Electronic expansion valve EEV
    - Shell and tube heat exchanger
    - Electronic pressure sensor for high and low pressure

    Control & regulation:

    - Unit main switch
    - Automatic circuit breakers for all electric consumers
    - Autoadaptive microprocessor control
    - Water inlet or outlet control
    - Automatic self-diagnostics
    - Alphanumeric display
    - Selection of various languages
    - Reading off alarm or error messages
    - Remote on/off contact
    - Collective fault message
    - Operation status message of unit

    Accessories:
    - Master/slave operation with up to 5 units in one hydraulic circuit
    - Connection to the building management system via modbus, LonWorks and BACnet possible
    - Connection of an additional remote control
    - Many further extensive accessories available

    • ErP 2018 ready
    • Indoor installation
    • Screw compressor
    • Cooling
    • Refrigerant R-134a
    • Shell and tube heat exchanger
    • Master/slave operation is possible
    • BMS integration is possible
  •

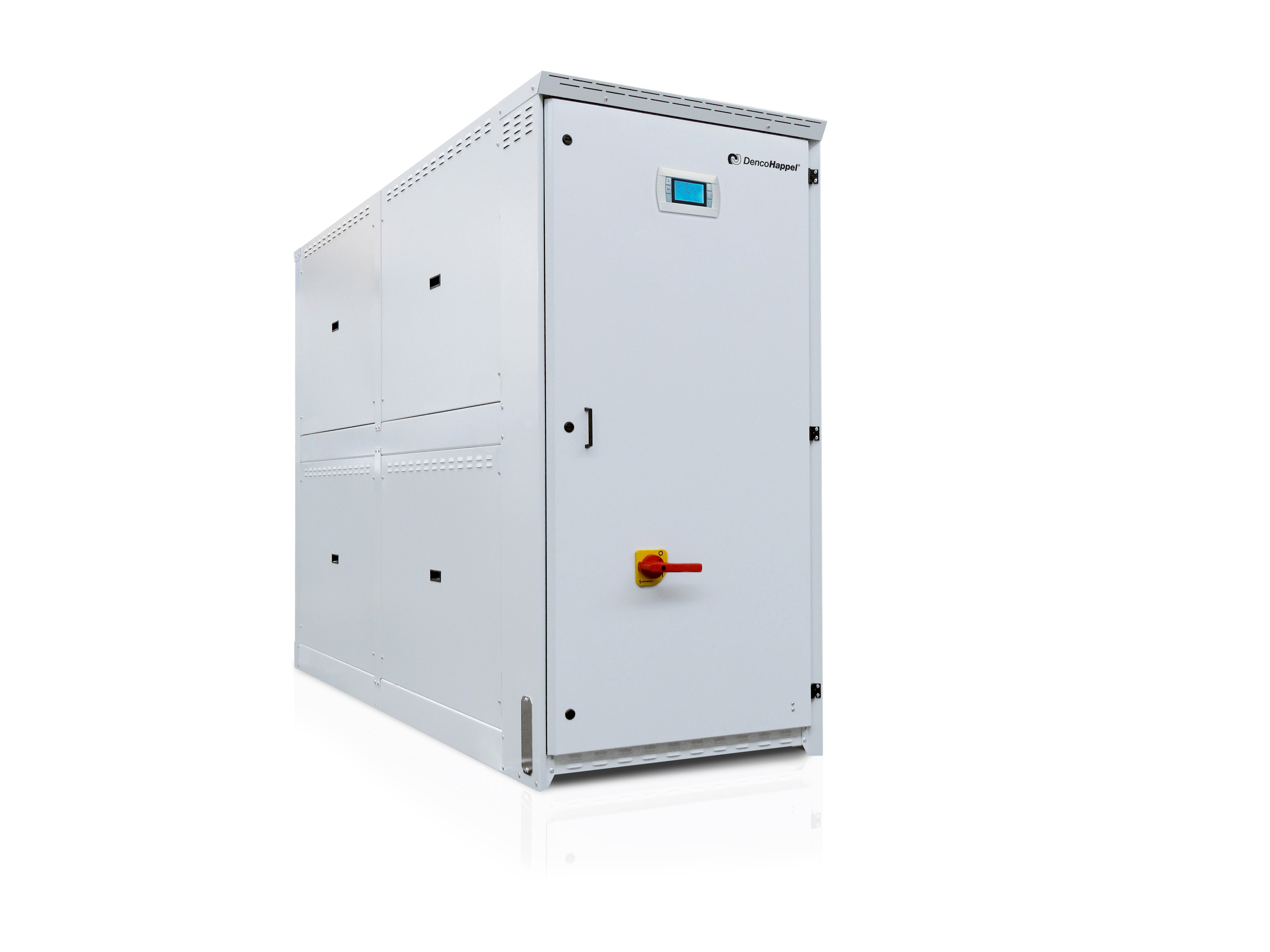

    GLWC 2012 – 4120 CD2 (38 - 400 kW)

    General:

    - Model as water-cooled chiller
    - Space-saving under consideration of optimal service access

    Refrigeration circuit:

    - Depending on capacity stage, the units have 1-2 refrigeration circuits
    - Equipped with 2 or 4 scroll compressors in tandem design
    - Electronic expansion valve EEV
    - Plate heat exchanger
    - Electronic pressure sensor for high and low pressure

    Hydraulics:

    - Optional hydraulic module for chilled water and heat-rejection water circuit with standard or inverter pump
    - Water pumps available in two power output levels
    - 1 or 2 water pumps for redundant operation with with automatically timed switch-over or in the event of a pump malfunction
    - Water filter and flow monitor available as accessories

    Control & regulation:

    - Unit main switch
    - Automatic circuit breakers for all electric consumers
    - Autoadaptive microprocessor control
    - Water inlet or outlet control
    - Automatic self-diagnostics
    - Alphanumeric display
    - Selection of various languages
    - Reading off alarm or error messages
    - Remote on/off contact
    - Collective fault message
    - Operation status message of unit

    Accessories:

    - Master/slave operation with up to 5 units in one hydraulic circuit
    - Connection to the building management system via modbus, LonWorks and BACnet possible
    - Connection of an additional remote control
    - Many further extensive accessories available

    • Variable Pump Speed
    • Electronic Expansion Valve
    • ErP 2021 ready
    • Indoor installation
    • Scroll compressor
    • Cooling
    • Refrigerant R-410A
    • Plate heat exchanger
    • Master/slave operation is possible
    • BMS integration is possible
  •

    GLWH 2012 – 4120 CD2.H (38 - 400 kW)

    General:

    - Model as water/water heat pump
    - Space-saving under consideration of optimal service access

    Refrigeration circuit

    - Depending on capacity stage, the units have 1-2 refrigeration circuits
    - Equipped with 2 or 4 scroll compressors in tandem design
    - Electronic expansion valve EEV
    - Plate heat exchanger
    - Electronic pressure sensor for high and low pressure

    Control & regulation:
    - Unit main switch
    - Automatic circuit breakers for all electric consumers
    - Autoadaptive microprocessor control
    - Water inlet or outlet control alternatively for evaporator or condenser
    - Automatic self-diagnostics
    - Alphanumeric display
    - Selection of various languages
    - Reading off alarm or error messages
    - Remote on/off contact
    - Collective fault message
    - Operation status message of unit

    Accessories:
    - Master/slave operation with up to 5 units in one hydraulic circuit
    - Connection to the building management system via modbus, LonWorks and BACnet possible
    - Connection of an additional remote control
    - Many further extensive accessories available

    • Variable Pump Speed
    • Electronic Expansion Valve
    • ErP 2021 ready
    • Refrigerant R-410A
    • Cooling
    • Heating
    • Indoor installation
    • Scroll compressor
    • Plate heat exchanger
    • Master/slave operation is possible
    • BMS integration is possible
  •

    GLWH 2012 – 4120 CD2.R (38 - 400 kW)

    General:

    - Model as water/water heat pump with reversible refrigeration circuit
    - Space-saving under consideration of optimal service access

    Refrigeration circuit

    - Depending on capacity stage, the units have 1-2 refrigeration circuits
    - Equipped with 2 or 4 scroll compressors in tandem design
    - Electronic expansion valve EEV
    - 4-way switching valve to switch over the refrigerant circuit
    - Plate heat exchanger
    - Electronic pressure sensor for high and low pressure

    Hydraulics:
    - Optional hydraulic module for chilled water and heat-rejection water circuit with standard or inverter pump
    - Water pumps available in two power output levels
    - 1 or 2 water pumps for redundant operation with with automatically timed switch-over or in the event of a pump malfunction
    - Water filter and flow monitor available as accessories

    Control & regulation:

    - Unit main switch
    - Automatic circuit breakers for all electric consumers
    - Autoadaptive microprocessor control
    - Water inlet or outlet control
    - Automatic self-diagnostics
    - Alphanumeric display
    - Selection of various languages
    - Reading off alarm or error messages
    - Remote on/off contact
    - Collective fault message
    - Operation status message of unit

    Accessories:

    - Master/slave operation with up to 5 units in one hydraulic circuit
    - Connection to the building management system via modbus, LonWorks and BACnet possible
    - Connection of an additional remote control
    - Many further extensive accessories available

    • Variable Pump Speed
    • Electronic Expansion Valve
    • ErP 2021 ready
    • Indoor installation
    • Scroll compressor
    • Cooling
    • Heating
    • Refrigerant R-410A
    • Plate heat exchanger
    • Master/slave operation is possible
    • BMS integration is possible
  •

    GLWH 1130 – 4960 CA2.HT (345 – 2581 kW)

    Equipment:

    • HT version with 1, 2, 3 or 4 screw compressors
    • One screw compressor per refrigerant circuit for best possible redundancy
    • Screw compressor with continuously variable capacity control
    for constant water outlet temperature
    • Expanded operating limits to 60 °C warm water outlet temperature
    • Control cabinet on the front side
    • Pump enabling as an option
    • Selectable regulation of condenser water temperature (warm water) and evaporator water temperature (chilled water)
    • Autoadaptive microprocessor control
    • Unit main switch
    • Automatic circuit breakers for all electric consumers
    • Configuration with an electronic expansion valve EEV
    • Controller: HVAC systems Step III
    • Master/slave operation with HVAC System unit series available as an accessory item
    • Connection to BMS via optional interface

    • Indoor installation
    • Screw compressor
    • Cooling
    • Heating
    • Refrigerant R-134a
    • Shell and tube heat exchanger
    • Master/slave operation is possible
    • BMS integration is possible
    • Unit as high-temperature model
Contact Us

DencoHappel UK Ltd.

Moreton Business Park Moreton-on-Lugg Hereford HR4 8DS
United Kingdom
+44 1432 27 7277
+44 1432 26 8005
Downloads
Areas of Application

- Building with little space for outside installation
- Increased requirements on the sound level
- Building listed as architectural landmark
- Use of antifreeze agents not allowed

Technical Information and energy label
Use our energy label tool for more technical information
